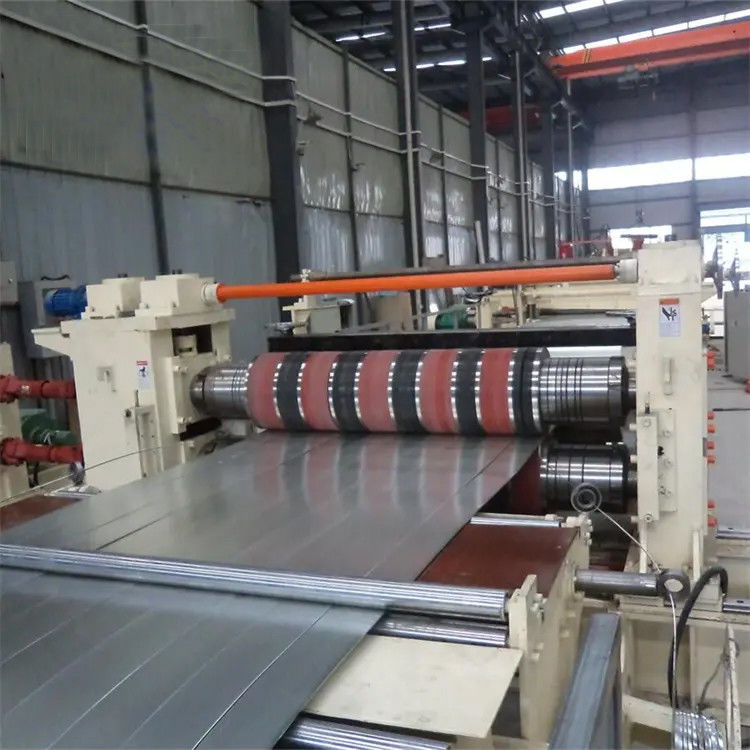

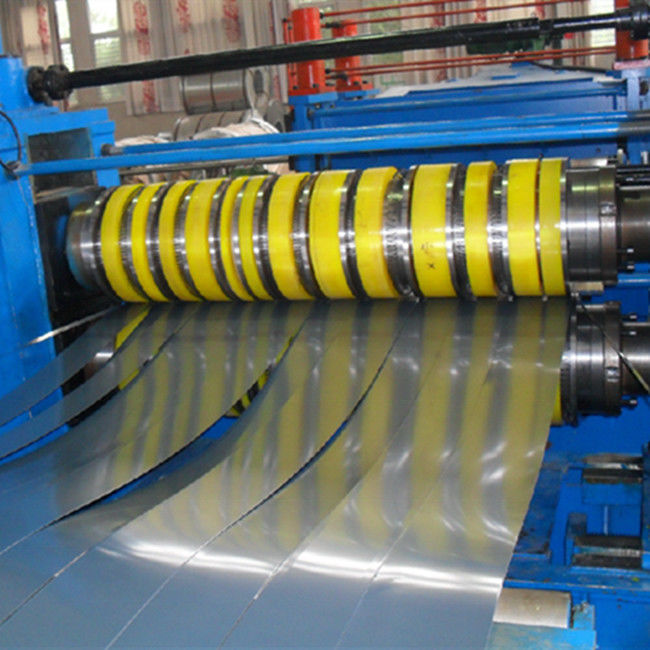

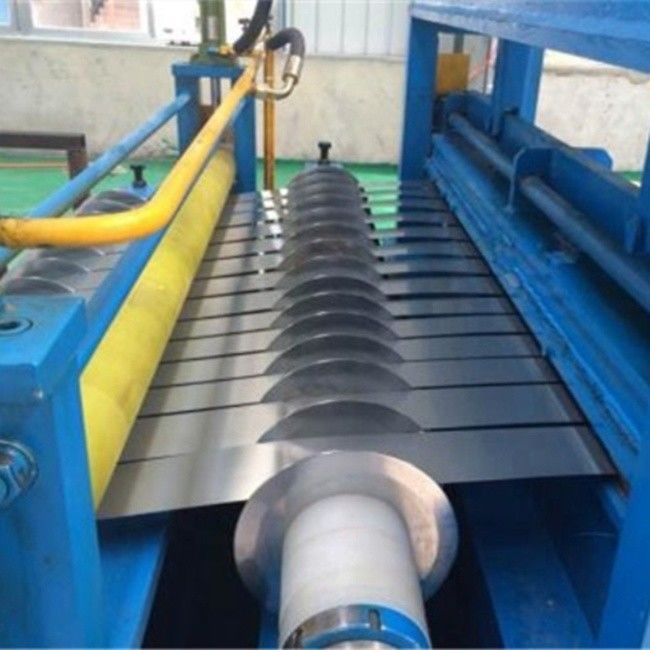

Steel Coil 40m/min High Speed Slitting Line Machine With Hydraulic Uncoiler And Recoiler
The mini slitter line can become an ideal support if the product includes a great variety of coils with reduced widths in which it is certainly not economical to use a large line for cutting coils under 300 mm and especially when very reduced spaces are necessary because of the product type.
Furthermore, the mini-line makes it possible to reach considerable speeds, up to 500 m/min. Other specifications: coil width from 300 mm to 600 mm, coil weight from 3 to 8 Ton, material thickness from 0.2 to 3.2 mm, and automatic decoiling by drawing or by loop.
Recommended for producing narrow coils, but especially a fast line for small spaces and particularly suitable for brass, copper, aluminium, tinfoil and lamination steel but also for cold-rolled, galvanized and prepainted materials and stainless steel.
| No. | Item | Description |
| 1 | Main Specification | 1 Raw Material: Galvanized, Aluminum, Color steel, Hardness 235MPa - 485MPa |
| | 2 Raw Material Thickness: 0.3 mm - 3.0 mm |
| | 3 Raw Material Width: 600 mm - 1600 mm |
| | 4 Tape Inner Diameter: φ 480 mm - φ 530 mm |
| | 5 Tape Outer Diameter: φ 1600 mm |
| | 6 Coil Weight: 5 tons - 10 tons |
| | 7 Slitting No.: Max 30 pcs |
| | 8 The Highest Slitting Line Speed: 8 m/min - 30 m/min |
| | 9 Minimum Cutting Line Width: 35 mm |
| | 10 Cutting Width Precision: ± 0.01 - ± 0.05 mm |
| | 11. Rated Operational Voltage: 240 V, 3 Phase, 60 Hz |
| | 12. Total Weight: 13000 KG |
| | 12. Working Space(L*W): 20000 mm*6000 mm |
| 2 | Decoiler Machine Specification | 1 Tape Outer Diameter: Max φ 1600 mm |
| | 2 Tape Width: 600 mm - 1600 mm |
| | 3 Tape Inner Diameter: φ 480 mm - φ 530 mm |
| | 4 Coil Weight: 5 tons - 10 tons |
| | 5 Max Working Speed: 8 m/min - 30 m/min |
| | 6 Tape Tight Range: φ 480 mm - φ 530 mm |
| | 7 Shaft Diameter: φ180 mm |
| 3 | Decoiler Machine Specification | 8 Roller Effective Length: 1600 mm |
| | 9 Drive Motor Power: 5.5 KW |
| | 10. Loading Car Diameter: φ 700 mm - φ 1500 mm |
| | 11 Loading Car Weight: 5 tons - 10 tons |
| | 12 Car Speed: About 4 m/min |
| 4 | Slitting Machine Specification | 1 Cutting Width: Max φ 1600 mm |
| | 2 Cutting Thickness: 0.3 mm - 2.0 mm |
| | 3 Cutter Shaft Diameter: φ180 mm |
| | 4 Cutter Shaft Material: Cr 40 |
| | 5. Cutter Size: 200 mm*300 mm*15 mm |
| | 6 Cutter Material: Cr12MoV |
| | 7 Cutter Spacer Size: 180 mm*240 mm*15 mm |
| | 8 Drive Motor: 15 kw |
| | 9 Cutting No.: 2-30 pcs |
| | 10 Cutter No.: Max 32 pcs |
| 5 | Planing Machine | 1 Shaft Diameter: φ 130 mm |
| | 2 Shaft No.: Up 2 rows, down 3 rows |
| | 3 Mid Plate Thickness: 40 mm |
| | 4 Mulch Applicator Diameter: φ 130 mm |
| | 5 Film Width: 1600 mm |
| 6 | Tension Table | 1 Segregation Shaft: 3 pcs, 1 pcs pressure shaft |
| | 2 Air Cylinder: 3 pcs |
| 7 | Recoiler Specification | 1 Tape Outer Diameter: Max φ 1600 mm |
| | 2 Tape Width: 600 mm - 1600 mm |
| | 3 Tape Inner Diameter: φ 480 mm - φ 530 mm |
| | 4 Coil Weight: 5 - 10 tons |
| | 5 Max Working Speed: 8 m/min - 30 m/min |
| | 6 Tape Tight Range: φ 485 mm - φ 530 mm |
| | 7 Shaft Diameter: φ 180 mm |
| | 8 Roller Effective Length: 1750 mm |
| | 9 Drive Motor Power: 30 kw |
| 8 | Recoiler Specification | 10 Loading Car Diameter: φ 1000 mm - φ 1750 mm |
| | 11 Loading Car Weight: Max 10 tons |
| | 12 Car Speed: About 4 m/min |
| 9 | Electrical Control System | 2 sets. Computer Control System is Siemens PLC. |
| 10 | Edge Collecting Machine | 1 Drive Motor: 3 kw |
| | 2 Collecting Material Width: Max 20 mm |
| | 3 Double Edge Width: 400 mm |
